10 KVA Diesel Generator

Monday, 22 April 2013

Features and Benefits
  • Maximum 11kVA 230 Volts, @50hz, 1500rpm
  • AVR delivers non fluctuating power
  • Digital Control Panel
  • 12 Volt electric starter ensures easy starting
  • Low oil pressure shut down system
  • Low fuel cut out protection
  • Low water cut out engine protection
  • Enclosed structure ensures quieter operation
  • Single-phase output meets differing requirements
  • Three cylinder: vertical, four stroke, water cooled, direct injection diesel engine
  • 8 hours running @ full load on a single tank of fuel
  • Dual access doors for easy maintenance
  • Silent Enclosure
  • * All ratings are at sea level
>>>> BP10S <<<<<
Alternator Specifications
Alternator Model Alternator Model WT-164B
Rated Frequency (Hz) 50
Rated Voltage (V) 230
Rated Current (A) 43.5
Rated Output/Prime Power (kVA) 10.0
Max Output/Standby Power (kVA) 11.0
Rated Rotation Speed 1500
Power Factor cosØ 0.8
Pole Number 2
Phase Number Single Phase
Diesel Engine Specifications
Model Type YD480D
Type Three cylinder: vertical, four stroke, water cooled, direct injection diesel engine
Starting System 12 Volt Electric Starter
Auto-Decompression for easy starting Yes
Displacement (L) 1.357
Compression Ratio 18:1
Rated Power (kW / rpm) 12.0 / 1500
Fuel Type Diesel
Lube Oil L-ECD grade or 15W40
Low Pressure alert System Yes
Low fuel cut out protection Yes
General Specifications
Fuel Tank Capacity (L) 25
Continuous Running time @ full load (Hr) 8 @ full load
Dimensions: (L x W x H) 1620*820*1120 (mm)
Weight (Kg) 600
Structure Type Ultra Silent
Noise Level (dBA @ 7m) 64 - 68
AVR Constant voltage AVR
Excitation Mode Brushless Self Excitation
Panel Type Digital Control Panel
Control Panel GU611A Harsen Controller
ISO9001 & CE certified Yes

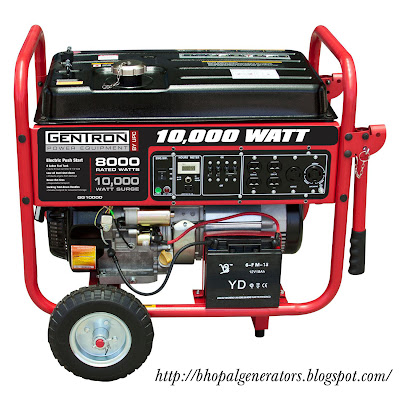

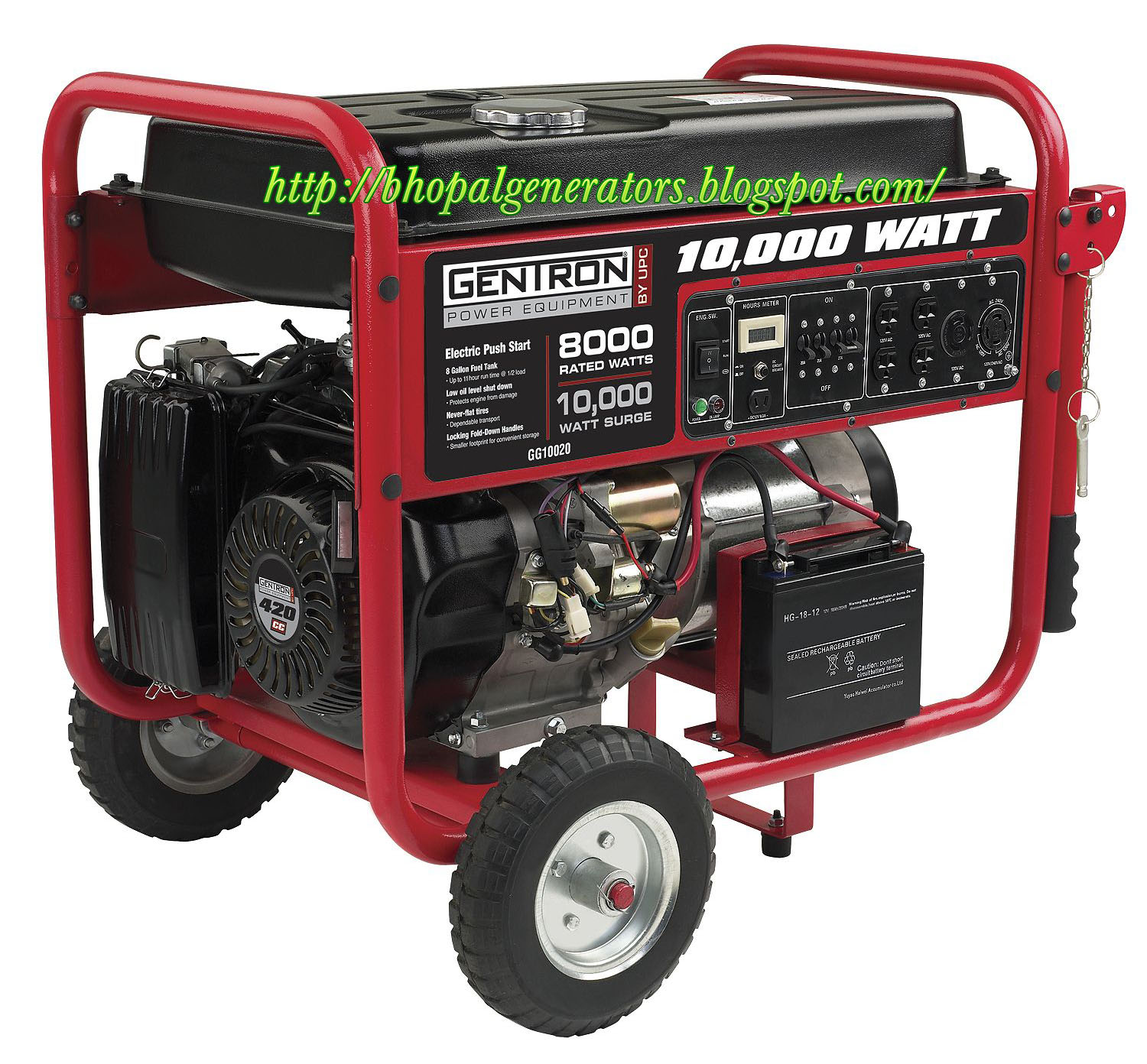

Gentron - 10,000 Watt Gas Generator

Saturday, 30 March 2013


Portable Power, Easy Push Start

Enjoy reliable portable power with this generator with a new more rugged frame design. Convenient electric push button start, a mobility wheel kit and a powerful 10,000 watt surge output make this an ideal solution for emergency home backup and commercial use.

Versatility Meets Convenience

Included are six AC outlets, one DC outlet, an hour meter, and a larger capacity fuel tank for extended run time. The heavy-duty steel frame features fully-isolated motor mounts for quietness. This generator is EPA certified. In addition, all shipments to California are CARB certified. This product is shipped fully assembled, except the wheel kit.

Outlets Included:

  • 4 x 120V AC standard outlets
  • 1 x 120V twist-lock
  • 1 x 120/240V twist-lock
  • 1 x 12V DC


Engine Brand: JD
Starting Watts: N/A
Running Watts: 8,000
Surge Watts: 10,000
Starter: Push Button (battery included) recoil start system assembly
Control Panel: Yes
Automatic Idle Control: No (constant 3600 RPM)
Automatic Voltage Regulation: Yes
Hour Meter: Yes
Run Time at 1/2 Load (Hours): 11 hr.
Fuel Gauge: No
Fuel Capacity (Gallons): 8.0
Recommended Oil (Quarts): 1.16 qt. (fill to upper line on dipstick)
Low Oil Shut Down: Yes
Noise Level (Decibels): 76 dB
Wheel Kit: Yes
OSHA Required GFCI Outlets: No
UL Safety Listing: Yes
CSA Safety Listing: N/A
ETL Safety Listing: N/A


  • 1 year parts and labor limited manufacturer's warranty
  • For issues not covered by warranty: All engine-related products are non-returnable once gasoline or oil has been poured into the engine

Assembled Size : 20 ½”W x 30”L x 26”H


280 KWA Diesel Generator

Monday, 11 March 2013

280 kw diesel generator set(350 kva diesel generator) are drove by Deutz Brand diesel engines manufactured by Deutz,and are connected with brushless generator fo Marathon or Stamford series and switch-broad,according to the requirements of our clients.The gensets have special devices for water temperature,oil temperature,low oil pressure and over-speed protection,so the products have many characteristics such as high precise voltage adjustment,excellent dynamic performance,stable voltage,long time efficient and economicetc
Model 280KW/350KVA
GENERATOR SET Rated Frequency (Hz) 50
Rated Output Power (KW) 280
Rated Voltage (AC) (V) 230/400
Rated Current (AC) (A) 504
Power Factor (COSΦ) 0.8 (lag)
Power Supply AC, 3-phase, 4-lines
Diesel generator set size 2800×1200×1780
Diesel generator Weight(kg) 2500
ENGINE Engine Brand Deutz
Engine Model BF6M1015C-LA G3A
Number Of Cylinders 6
Engine build Line
Fuel type #0 Diesel (Natural temperature)
Fuel Consumption (g/KW/h) ≤198
Rated Rotation Speed (r/min) 1500
Starting Method 24V Electric starting
Cooling Method Closed cycle water-cooled
Speed Regulation E
ALTERNATOR Alternator Brand Marathon
Alternator Model MP-280-4
Rated Output Power (KW) 280
Phase & Threads three phase four threads

Insulation Class
self excitation
Voltage Regulation AVR
Protection class IP23
Main Electric Performance
Diesel Generators Voltage
Stable State Rate Instantaneous State Rate Stable Time Fluctuation Rate
1% -15%~+20% 1S 0.5%
Diesel Generator  Frequency
Stable State Rate Instantaneous State Rate Stable Time Fluctuation Rate
3~4% 8~12% 5~10S 0.5%
 you want buy 350 kva Deutz generator for sale,please feel free to contact us

Jackson Generator 125 KVA

Wednesday, 6 March 2013

Cummins Natural Gas Generating Set

Cummins G-855-G is simple in design and a proven workhorse, which has clocked millions of hours, operating in some of the most demanding conditions like oil field, textile, tea gardens etc. Cummins gas generating set has unique design features which allows operation on various natural gas fuels. It also incorporates the latest technology that provides high engine performance, low emission and greater load bearing capacity.


  • Cummins 6 cylinder, inline configuration, 4 stroke, watercooled 1500 RPM, naturally aspirated engine, rating conforming to ISO 3046 / BS 5514
  • Stamford single bearing, self-excited and self regulated brushless alternator at 0.8 power factor, 415V, 3 phase, 50 Hz. Specially designed MS fabricated base frame
  • Key performance components manufactured to exacting Cummins standards
  • Genset manufactured as per Cummins Recommendations Prime power rating as per ISO 8528 Benefits
  • Environment friendly
  • Low noise level
  • Greater load bearing capacity
  • Proven reliability and durability
  • Nation-wide service network
  • Unmatched warranty: 2 years/5000 hours
  • Single window after-sale support round the clock
  • Extended oil change period (1000 hrs)
  • Lower operating cost

Range – 125 Kva

Standard Scope

  • Cummins N series, open chamber combustion, watercooled engine, naturally aspirated, 6 cylinder, 4 stroke, rated at 1500 RPM, conforming to ISO 3046 / BS 5514 has the following specifications
  • Carburetor, Distributor, Ignition transformer, Spark plug, Hydraulic governor
  • Stainless steel exhaust flexible connection, Industrial type silencer
  • Radiator, Coolant inhibitor
  • Shell and Tube type lube oil cooler
  • Full flow, replaceable element type main and by-pass lube oil filter, Gas filter, Dry type replaceable paper element air cleaner with restriction indicator
  • Flywheel housing and flywheel to suit single bearing alternator
  • Ist and IInd stage pressure regulating valves, mechanical shut off valve, 24 VDC electrical shut off valve, 24 V DC Electric starting motor, Battery charging alternator
  • Engine control panel
  • Engine protections for high water temperature, low lube oil pressure, overspeed
  • First fill lube oil
  • Exhaust temperature gauge


  • Stamford brushless alternator
  • Self-excited, Self regulated
  • Salient pole revolving field
  • Single bearing
  • Automatic voltage regulator

Control Panel

Powder coated control panel manufactured with 14/16 gauge CRCA sheet and provides:

  • MCCB of suitable rating with overload and short circuit protection
  • Voltmeter and Ammeter with selector switch
  • Frequency meter
  • KWh meter
  • Indicating lamps for “Load On” and “Set Running”

  • 2 x 12 V dry, uncharged batteries with connecting leads and terminals
